Miniligne automatique permettant le remplissage et la fermeture des pots twist off

Compact lines

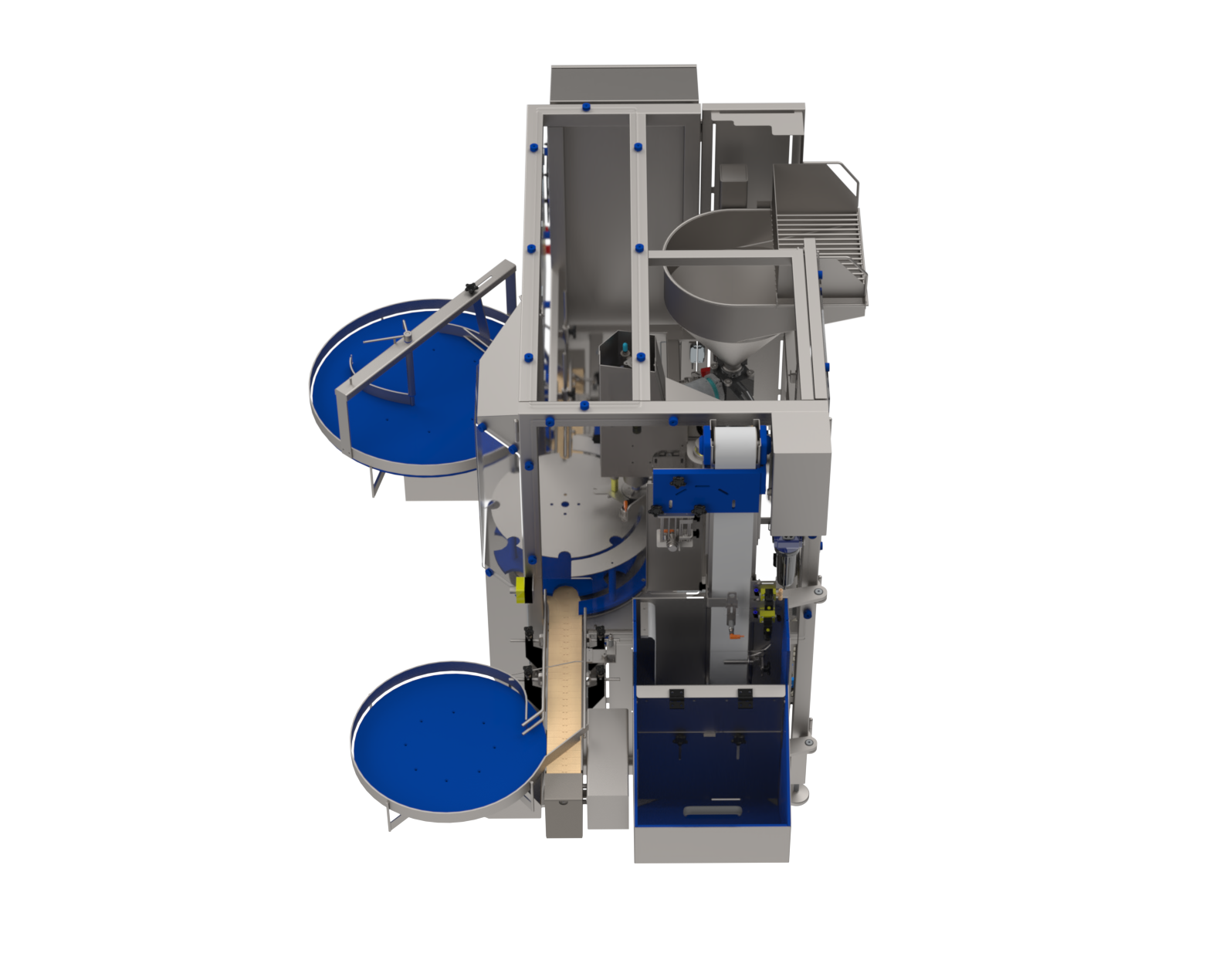

MY-LINE MINI

THE “ADVANTAGES” OF MY-LINE MINI

  • This mini line, whose compactness (2800 x 2100 mm overall) and ergonomics (total peripheral protections) have been particularly well thought out, aims for a nominal rate of 1500 units/h (subject to the finished product and format), this with just 1 operator.
  • Accessibility is optimal to allow format changes, cleaning operations at the end of the shift (hopper mounted on a pivot to be cleaned outside the enclosure perimeter) and maintenance (possibility of remote diagnosis via a secure connection).

Commercial documentation:

Made by

Container type

TO jars and bottles

Need

Close my jars, Fill

Cadence

1.500 Jars /mn

Products

Jams Honey Compotes, Pâtés Terrines Rillettes, Sauces and condiments, Ready meals, Pastry products, Soups and juices, Seafood products, Spreadable

Remote maintenance: secure remote control system

Caps post specifications: :

  • Steam vacuum capping station
  • For Twist Off capsule

Options : Steam generator, Pot counter

Filling station specifications: :

  • Filling station by linear piston or rotary piston
  • For liquid, creamy, semi-pasty products
  • With or without markerss

Options : Conveyor or table at the input and output, Double-walled hopper, Dosing tool, Feeding screw

Maximum cadence (depending on formats)

1.500 Jars /mn

Maximum cadence (depending on applications)

1.500 Jars /mn

Capsule diameter

TO 38 à 110

Diameter of packaging

40 à 130 mm

Height of packaging

40 à 255 mm

Power supply

400 V+ tri + T + N

Installed power

2,2 kW

Pneumatic power supply

6 bars

Air consumption

following options
